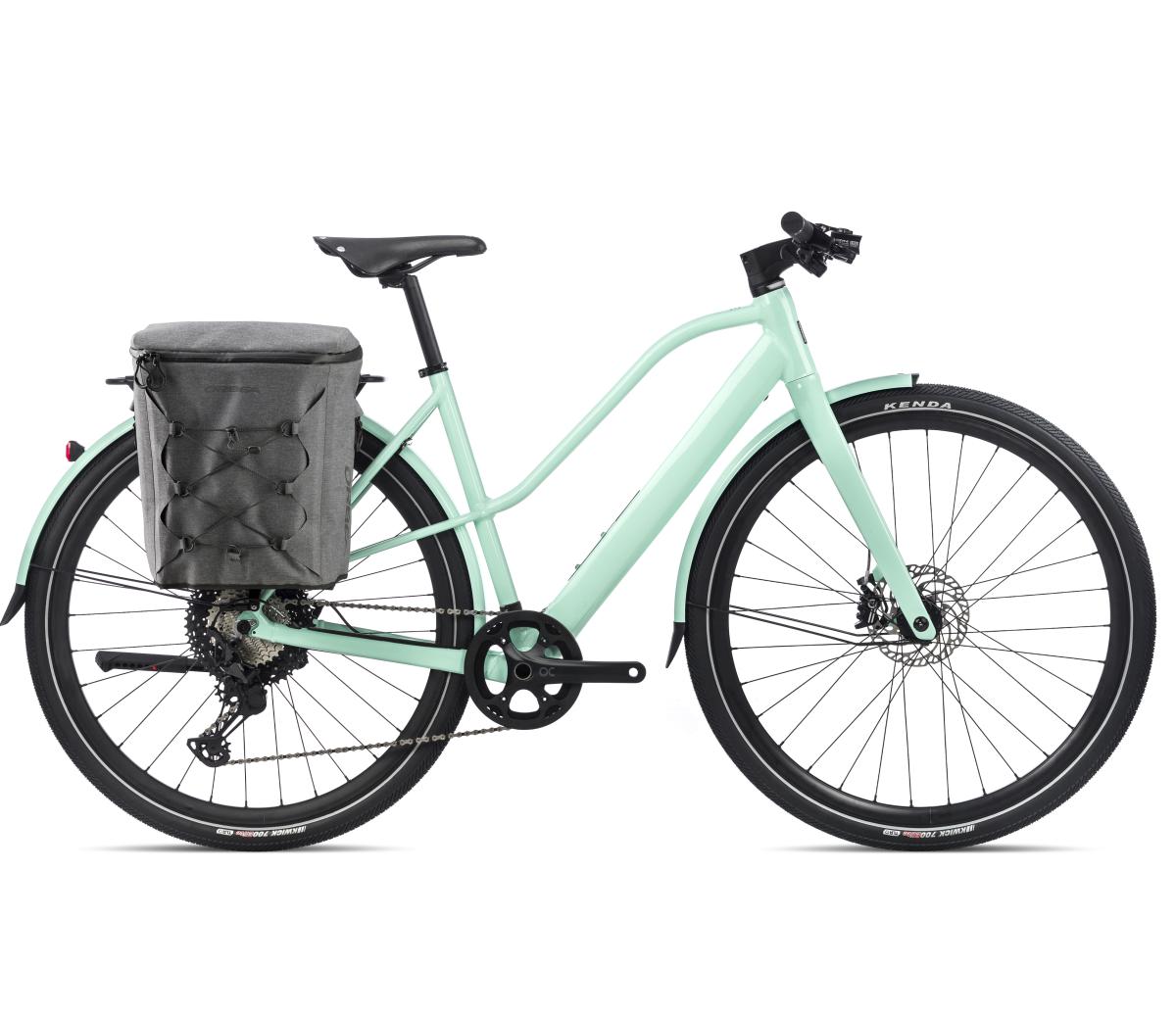

ORBEA VIBE MID H10 EQ M Light Green 2023

Spezifikationen

Fahrwerk

Rahmen

Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×45 maximun tire, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and fenders compatible

Gabel

Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

Steuersatz

Acros Alloy 1-1/2″ Internal Cable Routing

Übersetzung

Kurbel

Forged alloy, 42t, w/Chainguard

hebel

Shimano Deore M6100

Kassette

Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike

Schaltwerk

Shimano XT M8100 SGS Shadow Plus

Kette

KMC X12

Cockpit

Lenker

Alloy ,31.8mm, Rise 12mm, 700mm

Vorbau

Alloy forged, -6º, ICR

Bremsen

Bremsen

Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

Laufräder

Laufradsatz

Alloy, Tubeless, 700c, 21c, 32H

Reifen

Kenda K1052 700x45C Reflective type TLR

Vorderradachse

Orbea Thru Axle 12x100mm M12x2 P1 Hollow

Zubehör

Pedale

VP-537 Black

Hinterer gepäckträger

Orbea Vibe rear luggage carrier (Max:15Kg)

Gepäckträger-Zubehör

Orbea, Carrier side bag, backpack convertible with inner computer bag. 15l, waterproof, reflective.

Schutzblech

CURANA Apollo 55mm

Front Position Light

Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.

Scheinwerfer

Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens

Rücklicht

Lezyne FENDER STVZO

Ständer

Ursus Mooi R90 rear alloy adjustable

Klingel

Knog OI Classic

Komponenten

Sattelstütze

Alloy, 27.2mm, Setback 20

Sattel

Brooks Cambium C19 275×184

Handgriffe

Brooks Comfort Cambium 130mm

Ebike

Motor

Mahle motor hub X35 Plus

Akku

Mahle 36V/6.9A 248Wh ANT+

RANGE EXTENDER

Display

Ladegerät

Mahle X35

Remote

Mahle iWoc TRIO
